Connection refused docker plugin

Drone Support
1

When I try to create a step with the docker plugin it cannot connect to my repository. I have everything running under swarm and traefik.

level=info msg="Error logging in to v2 endpoint, trying next endpoint: Get https://registry.hidden.com/v2/: dial tcp: lookup registry.hidden.com on 127.0.0.11:53: read udp 127.0.0.1:44399->127.0.0.11:53: read: connection refused"

kind: pipeline
name: build

steps:
- name: docker
  image: plugins/docker
  settings:
    username:
      from_secret: registry_username
    password:
      from_secret: registry_password
    repo: registry.hidden.com/testing
    registry: registry.hidden.com
    debug: true
2

I see this error:

Error logging in to v2 endpoint

and this error:

read: connection refused

This means docker is getting a TCP connection refused error, which indicates a networking problem. Unfortunately triaging complex networking issue, especially related to traefik configuration, is outside of our area of expertise.

3

Since I can’t use the docker plugin, what do you recommend me to do to compile the image and upload it to the registry?

4

you can absolutely use the docker plugin, however, you will just need to triage your networking issues to understand why the tcp connection is being refused.

5

Any idea what it could be I can not find how to fix it?

 time="2021-02-24T03:05:35.328731653Z" level=info msg="Loading containers: start."
time="2021-02-24T03:05:35.367410010Z" level=warning msg="Running modprobe bridge br_netfilter failed with message: ip: can't find device 'bridge'\nbridge                147456  1 br_netfilter\nstp                    16384  1 bridge\nllc                    16384  2 bridge,stp\nip: can't find device 'br_netfilter'\nbr_netfilter           20480  0 \nbridge                147456  1 br_netfilter\nmodprobe: can't change directory to '/lib/modules': No such file or directory\n, error: exit status 1"
time="2021-02-24T03:05:35.439839705Z" level=info msg="Default bridge (docker0) is assigned with an IP address 172.17.0.0/16. Daemon option --bip can be used to set a preferred IP address"
6

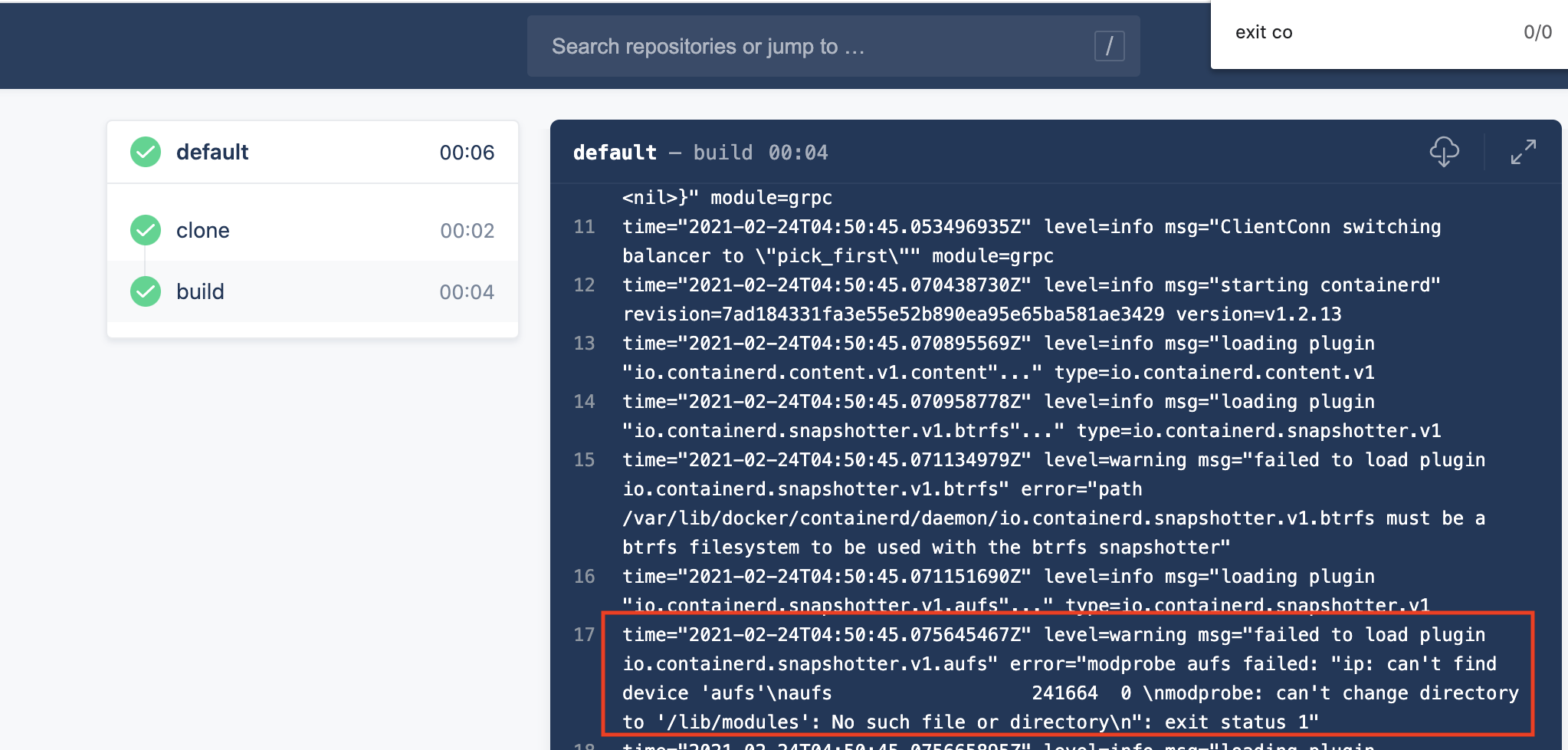

That warning message is expected and is not related to your network issues. It is a false positive and can be ignored. The below screenshot is an example of a real build which also displays the same warning message, and still completes successfully:

Screen Shot 2021-02-23 at 11.51.00 PM
Screen Shot 2021-02-23 at 11.51.00 PM2046×978 343 KB

You can audit the full build logs at https://cloud.drone.io/drone/hello-world/233/1/2.

level=info msg=“Error logging in to v2 endpoint, trying next endpoint: Get registry.hidden .com/v2: dial tcp: lookup registry.hidden .com on 127.0.0.11:53: read udp 127.0.0.1:44399->127.0.0.11:53: read: connection refused”

This error indicates a networking issue.

It could related to swarm and traefik; it could be related to the fact that drone pipelines do not use the default bridge network (which has dns implications); or it could be related to the fact that the docker plugin runs docker-in-docker (which could also have dns implications). But either way, it is definitely a networking issue.

7

The problem is in plugins/docker.

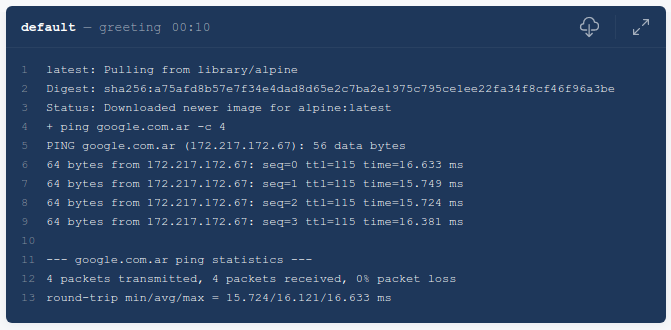

I tried an alpine by pinging google and it has internet.


8

The problem is in plugins/docker.
I tried an alpine by pinging google and it has internet.

The error indicates the connection to your private registry is being refused. The fact that you can ping google (a public address) seems unrelated to whether or not you can establish a tcp connection to your private registry.

You seem to feel very strongly that this is a problem with the plugin. I respectfully disagree. If you insist this is a plugin issue, as a next step, I recommend reviewing the plugin source code and sending a patch to GitHub - drone-plugins/drone-docker: Drone plugin for publishing Docker images

12

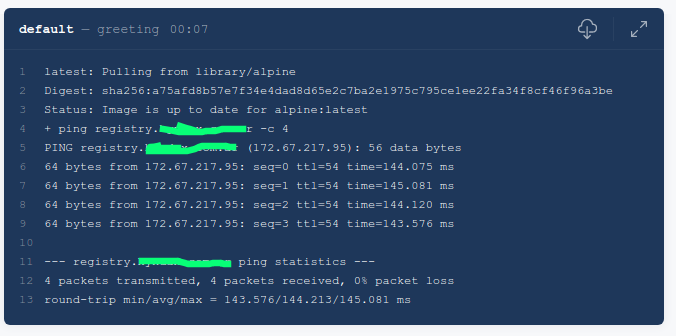

Here you go, it pings my registry perfectly…


I’m going to have to do it manually from ssh, I don’t see any other alternative…

13

pinging a server indicates the host is reachable, however, a tcp connection refused often indicates nothing is listening on the port. This can sometimes (but not always) be indicative of a dns problem, where the dns resolves to an undesired address.

In general, connection refused errors are generated during a connect system call when an application attempts to connect using TCP to a server port which is not open.

If it says Connection refused , it is likely that the other host is reachable, but there is nothing listening on the port. If there is no response (packet is dropped), it is likely a filter blocking the connection . Next, try nmap . This will tell you which ports are open and blocked.

14

I have tried everything and I can’t get it to work.
Do you have a drone template with swarm?
