Using KEY/VALUE pairs during build

Drone Support
1

I was reading this discussion Parameters When Promoting A build and I still cannot get KEY/VALUE pairs to work.

I carefully add KEY = ATEST and VALUE = 123 via the web gui when I do a new build

This is the pipeline:

kind: pipeline
type: docker
name: build_linux

steps:

- name: smoketest
  image: localregistry/tw-0.0
  environment:
    _ENVTEST: envtest
  commands:
    - env | grep -v DRONE | grep -v CI | sort

and this is the output:

+ env | grep -v DRONE | grep -v CI | sort

GIT_AUTHOR_EMAIL=noreply@drone
GIT_AUTHOR_NAME=drone
GIT_COMMITTER_EMAIL=noreply@drone
GIT_COMMITTER_NAME=drone
GIT_TERMINAL_PROMPT=0
HOME=/root
HOSTNAME=ea33d4bad639
OS_NAME=tw
OS_VERSION=0.0
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
PWD=/drone/src
SHLVL=0
_=/usr/bin/env
_ENVTEST=envtest

I’m convinced this is a bug.
This is with drone server v2.12.1

2

hello @reevespaul

I was just able to successfully test environment variables in a promoted pipeline with this config

kind: pipeline
type: docker
name: default

steps:
- name: env
  image: busybox
  commands:
  - env
  when:
    event:
    - promote
    target:
    - example

I set two variables, SOME_VARIABLE and ANOTHER_VARIABLE, both appeared in the log output from the env command.

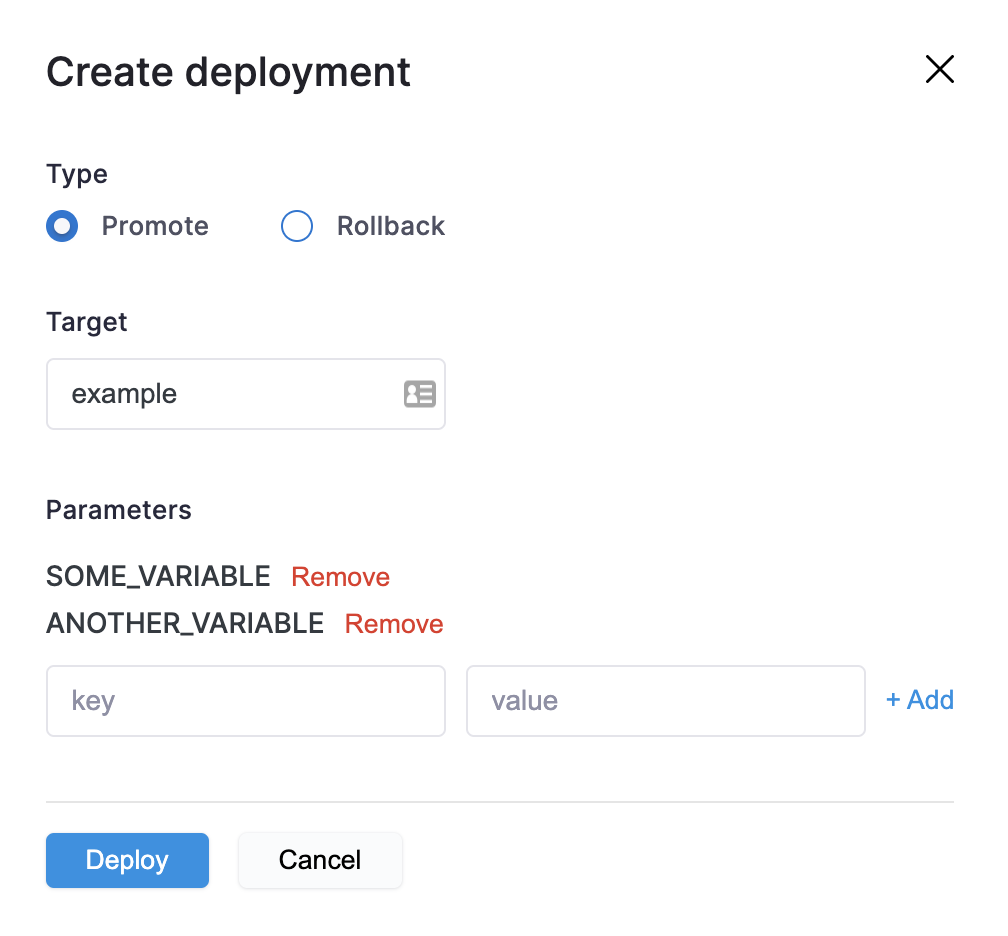

Screen Shot 2022-07-14 at 3.20.49 PM
Screen Shot 2022-07-14 at 3.20.49 PM1008×936 38.3 KB

In the past I have forgotten to hit the “+Add” button when adding variables, any chance that could be the issue?

3

(Sorry for the delayed reply - had to go down other rabbit holes.)

Yeah, I’ve been caught out by missing the ‘+Add’ button in the past - definitely bad UI design. But no, that is not the problem here.

I tested with ‘promote’ and yes - it works, just as you say.
But I was trying to pass KEY/VALUE pairs in the initial build. That is the bit that doesn’t work. Surely, for this feature to be useful it should support passing these variables at build and promote.

4

I was able to confirm this is supported and working in our API / backend code:
https://github.com/harness/drone/blame/3a23b0d0d4476701640683bc1010c4357e5543e7/handler/api/repos/builds/create.go#L94

@d1wilko can you please check the frontend code to see if we are passing build parameters as query parameters when invoking the API to create a new build?

5

Apologies for the delay in reply I have rejoined the drone team after a secondment!

I did a quick test in cloud.drone.io (which is an earlier version but it should be fine)

@reevespaul as you have noticed the key/value pairs are not being passed in the request for new builds - but they are for promotions - I’ll raise a ticket and fix this for new builds

Thanks :slight_smile:

6

Ok I have fixed this in this PR - bug: [DRON-433]: fix new build query logic by d1wilko · Pull Request #424 · drone/drone-ui · GitHub - it will be part of the next drone ui release :slight_smile:

1 Like
